Hydraulic Riveting Machine
|

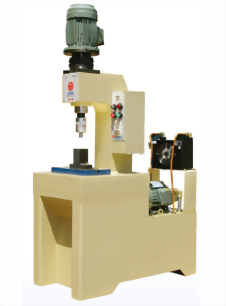

TC-150-3A Hydraulic Riveting Machine |
|
|
Steel sheet machine body, body and oil tank are separated, special designed inner groove, it is convenient for the legs extension space of the operator.
Specifications:
|
Model |
TC-150-3A |
|
Motor |
1x2 HP or 2x3 HP |
|
Stroke |
42mm |
|
Riveting capacity (mild steel) |
Solid rivet 3~10, Hollow rivet 1~25 |
|
Working cycle time(sec) |
0.5~10 |
|
Ordinary pressure (kg/cm2) |
10~70 |
|
Max pressure (kg/cm2) |
2200 |
|
Max. length rivet(mm) |
180 |
|
Weigh(kg) |
350 |
|
50/60HZ R.P.M |
1400/1720 |
|
------- Special machines for riveted products are available for ordering ------- |
|
